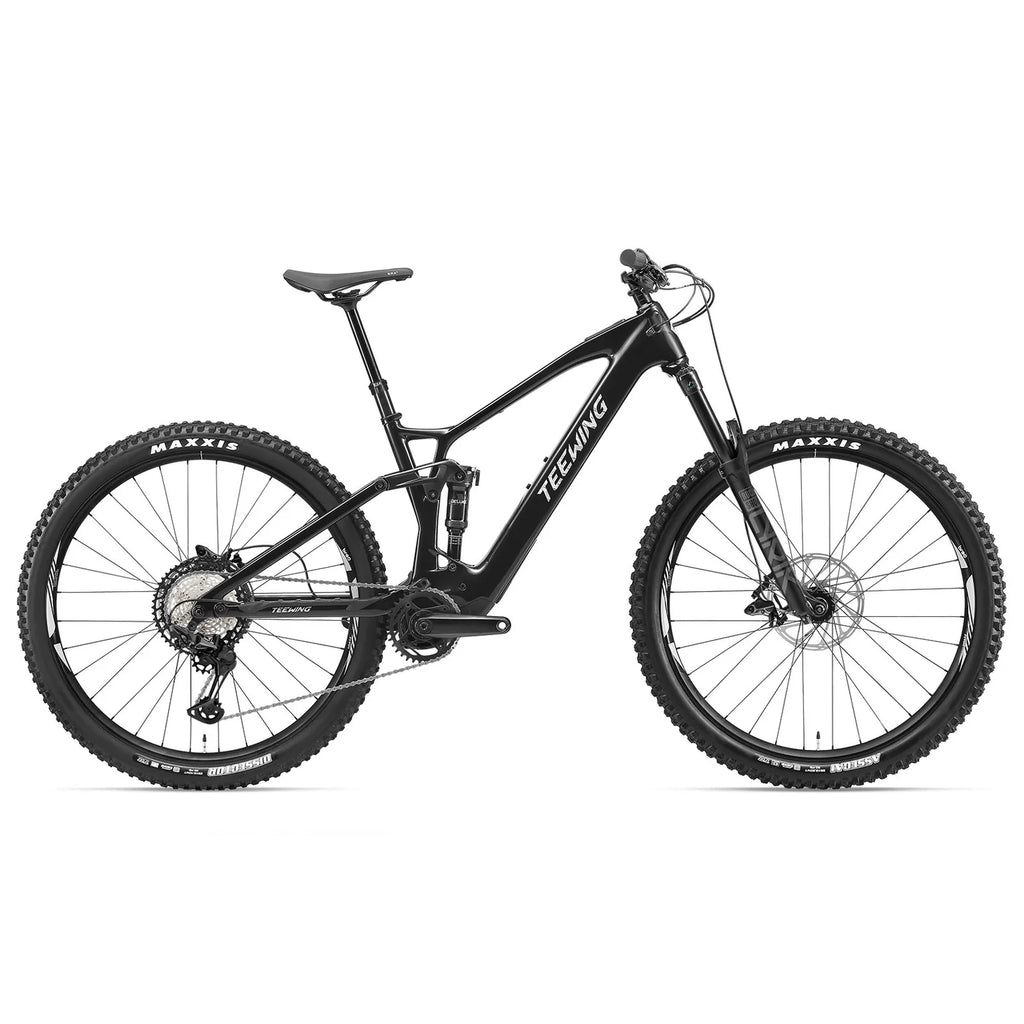

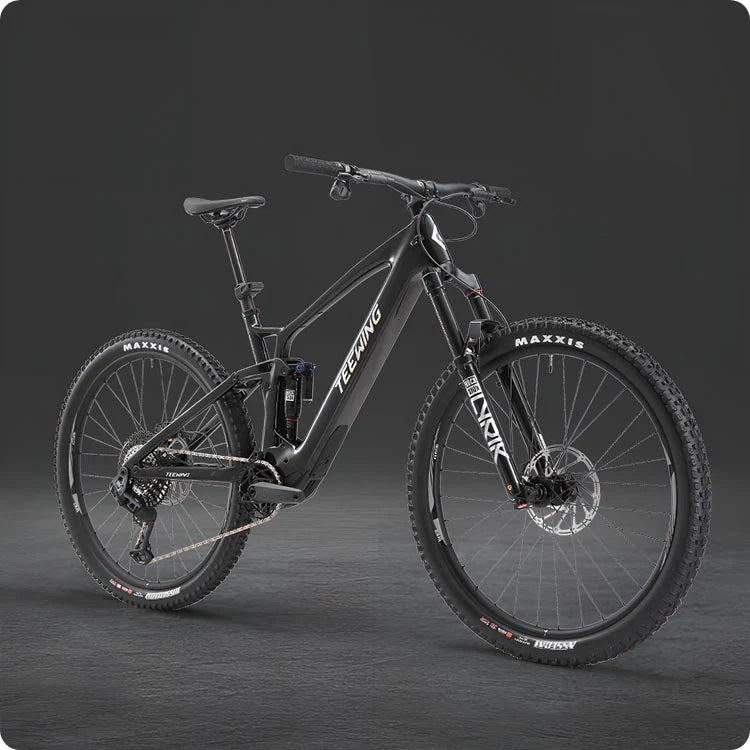

Teewing Bike Turbo Force XT

Teewing Turbo Force XT takes a bold step forward in e-mountain biking with the DJI Avinox motor, delivering 105 N·m of torque in a compact, powerful design. Built on a lightweight carbon frame, it’s stiff and agile, offering a responsive ride on any trail. To enhance the experience, it’s equipped with Shimano XT M8100 12-speed shifting for precise gear changes, and a smooth suspension setup with a RockShox FS Lyric BASE fork and DELUXE SELECT+ rear shock. With an high-capacity 800Wh battery, the Turbo Force XT keeps you powered up and ready for adventure.

Teewing Turbo Force XT

Frame

Teewing Turbo Force Carbon Frame

29° rear wheels

Cosmic Black

150mm rear travel

E-bike System

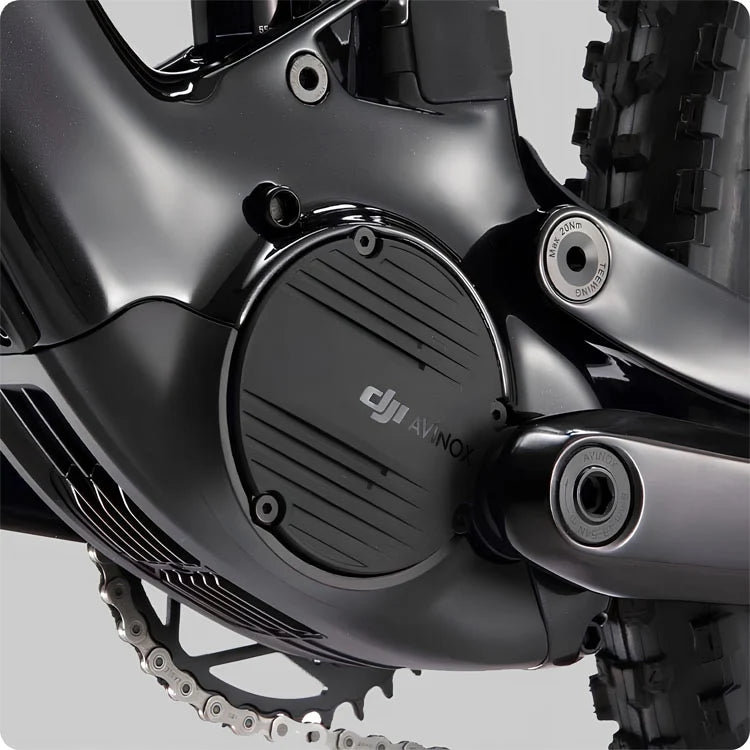

DJI Avinox M1 Drive Unit: 105 N·m

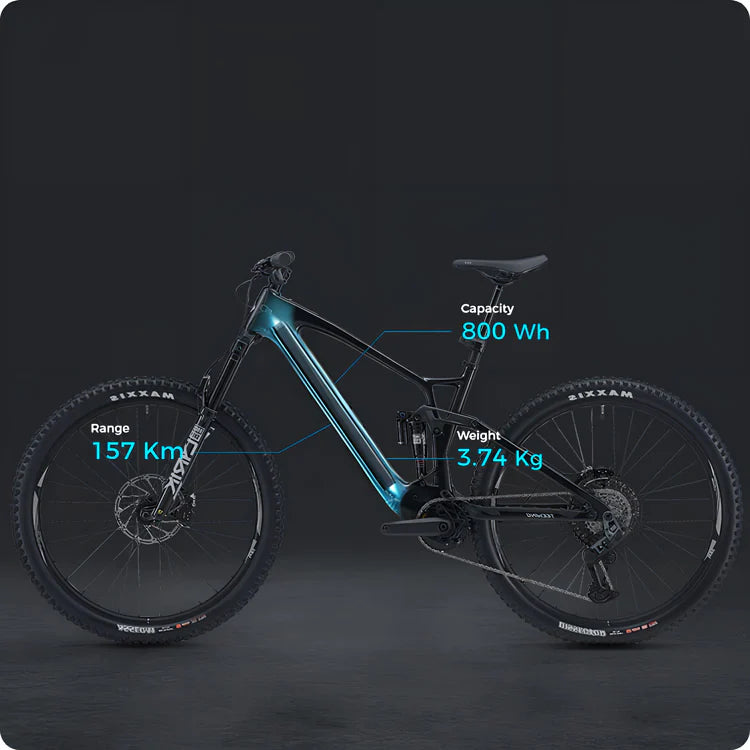

DJI Avinox Integrated Battery: 800Wh

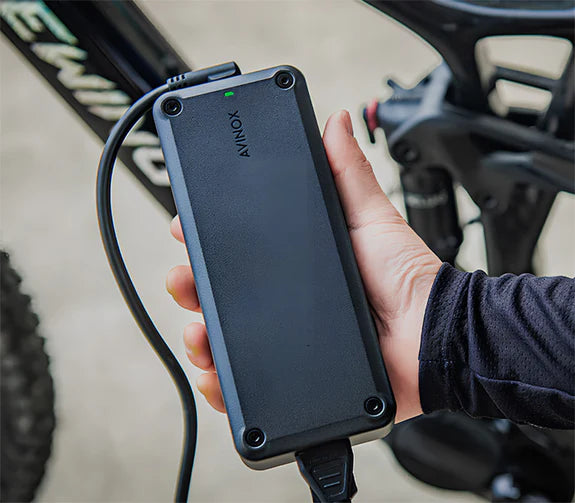

DJI Avinox Fast Charger: 4A/168W

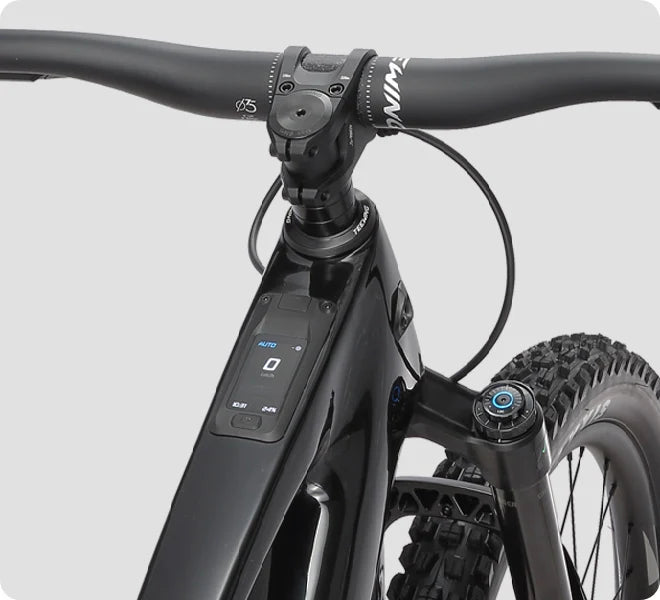

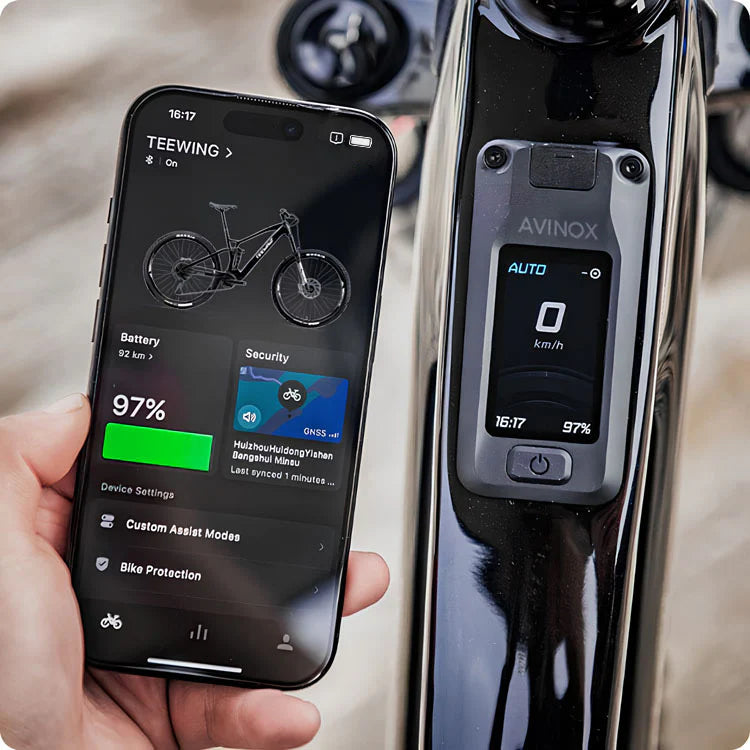

DJI Avinox Screen: 2-inch OLED Control Display

DJI Avinox Wireless Controllers: Right and left sides

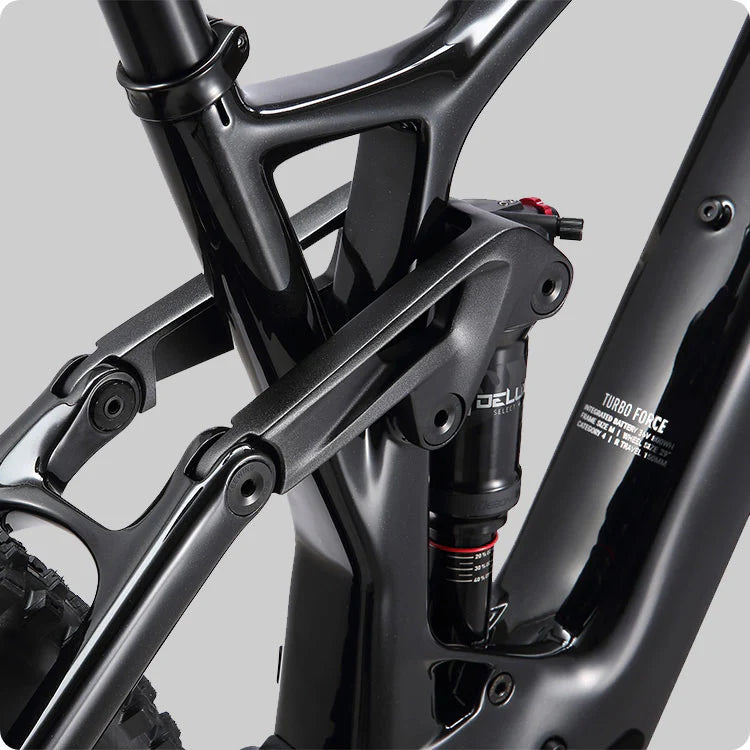

Rear Shock

Rockshox DELUXE SELECT+

Trunnion (185mm×55mm), LINEAR AIR CAN

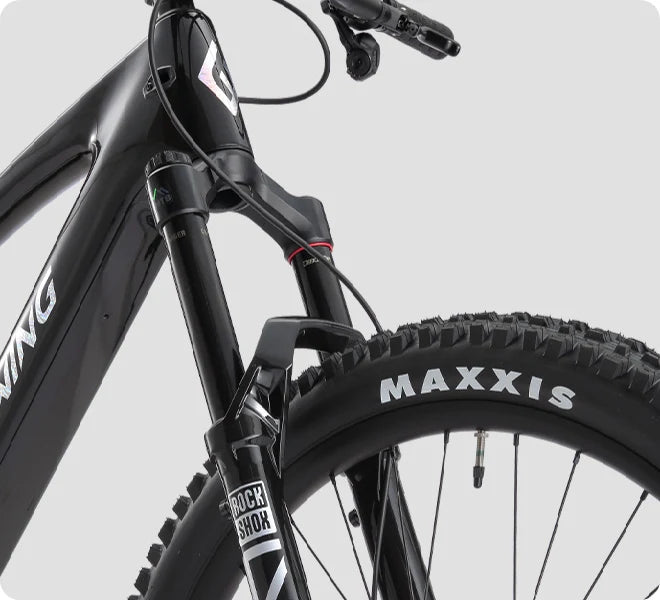

Fork

Rockshox FS LYRIK BASE

29" BOOST, 15X110mm, 160mm travel, 44mm rake

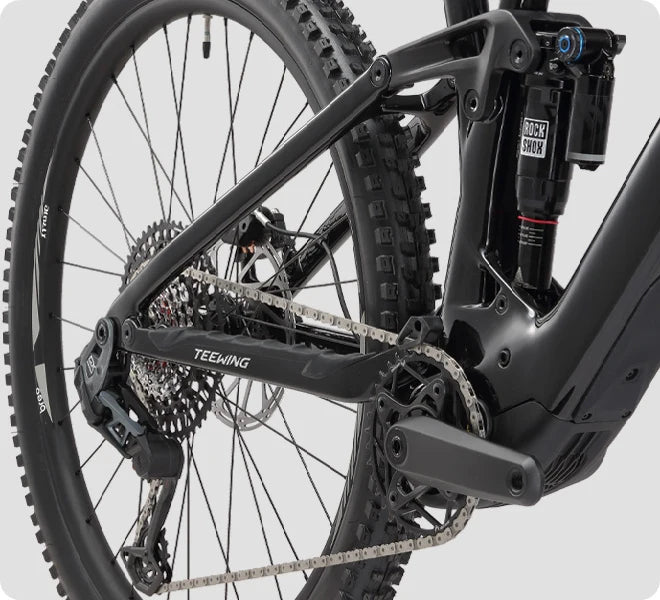

Transmission

Rear Derailleur: Shimano XT M8100, long cage

Shift Levers: Shimano XT M8100, 12 speed

Chain: Shimano SLX CN-M7100, 120LINKS

Chainring: Prowheel FD04 BCD=104,11/128*36T,BED

Cassette: Shimano SLX M7100, 10-51, 12 speed

Crankset: DJI Avinox SL Crank 160mm

Brakes

Shimano 4-piston hydraulic disc, M7100 lever, M7120 caliper

Shimano RT66, 6-bolt, 203mm

Wheels

Breo-X1701E

Spokes: SAPIM E-Light J-bend

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Alloy, 29'', 30mm internal width, 32H, tubeless ready

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR

Handlebar

Teewing Enduro AL7075-T6 Handlebar

8-degree upsweep, 8-degree backsweep

35mm rise, 800mm wide

Grips

VELO Enduro Grips

Stem

Teewing Enduro AL6061-T6

Clamping diameter: 35mm

Length: 40mm

Saddle

Selle Royal SRX Plus

Seatpost

EXA 31.6

L: 170mm

M: 150mm

XL: 190mm

Accessories

User Manual

Shock Pump

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Weight*

21.8kgs / 48.1 lbs

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
