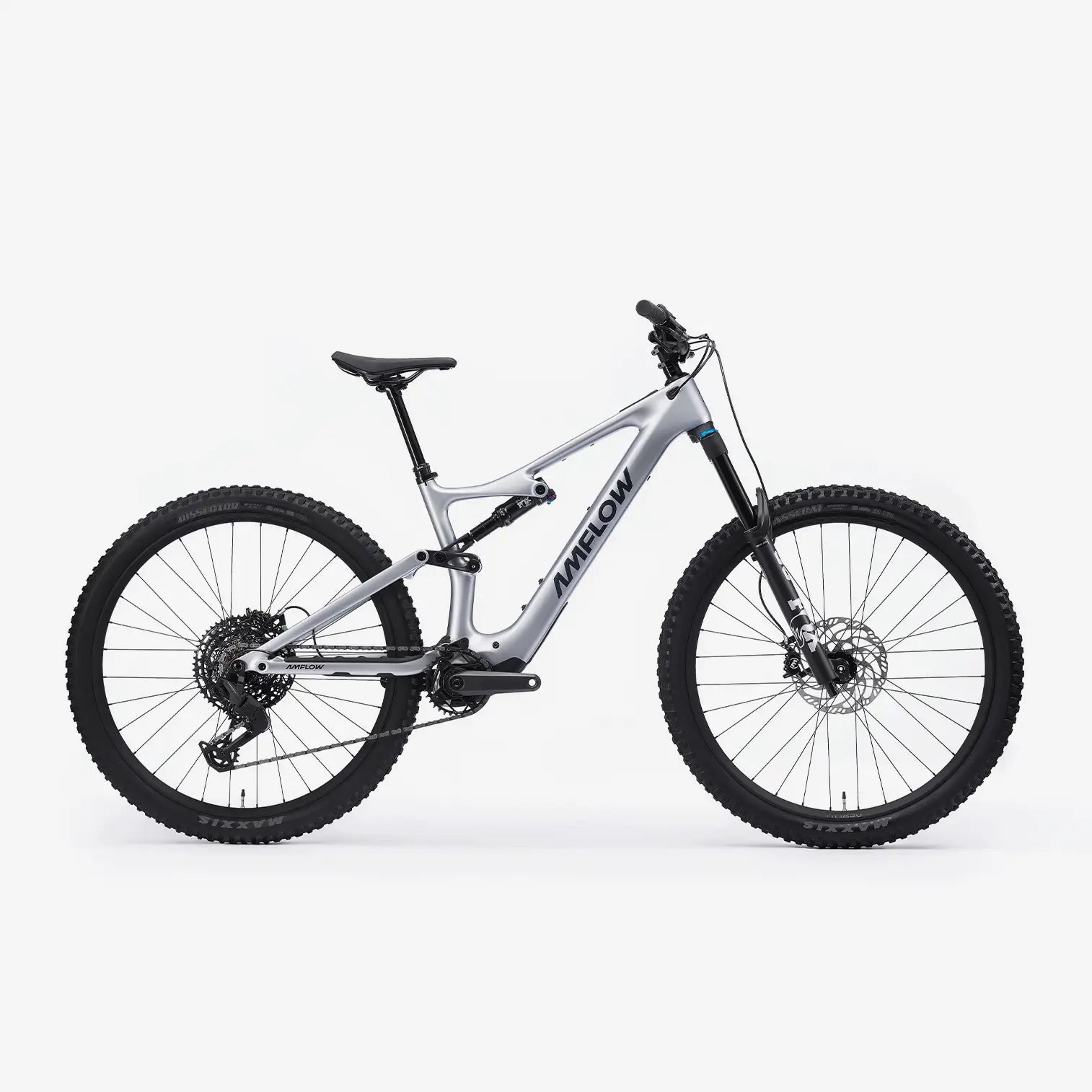

DJI Amflow PL

The Amflow PL electric mountain bike offers 1000 watts of peak power in an ultra-light build weighing 19.2 kg. With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

Frame
Amflow PL Carbon Frame
Satin Silver
150mm rear travel
Compatible with 27.5" and 29" rear wheels

E-Bike System
Avinox M1 Drive Unit: 105 N·m

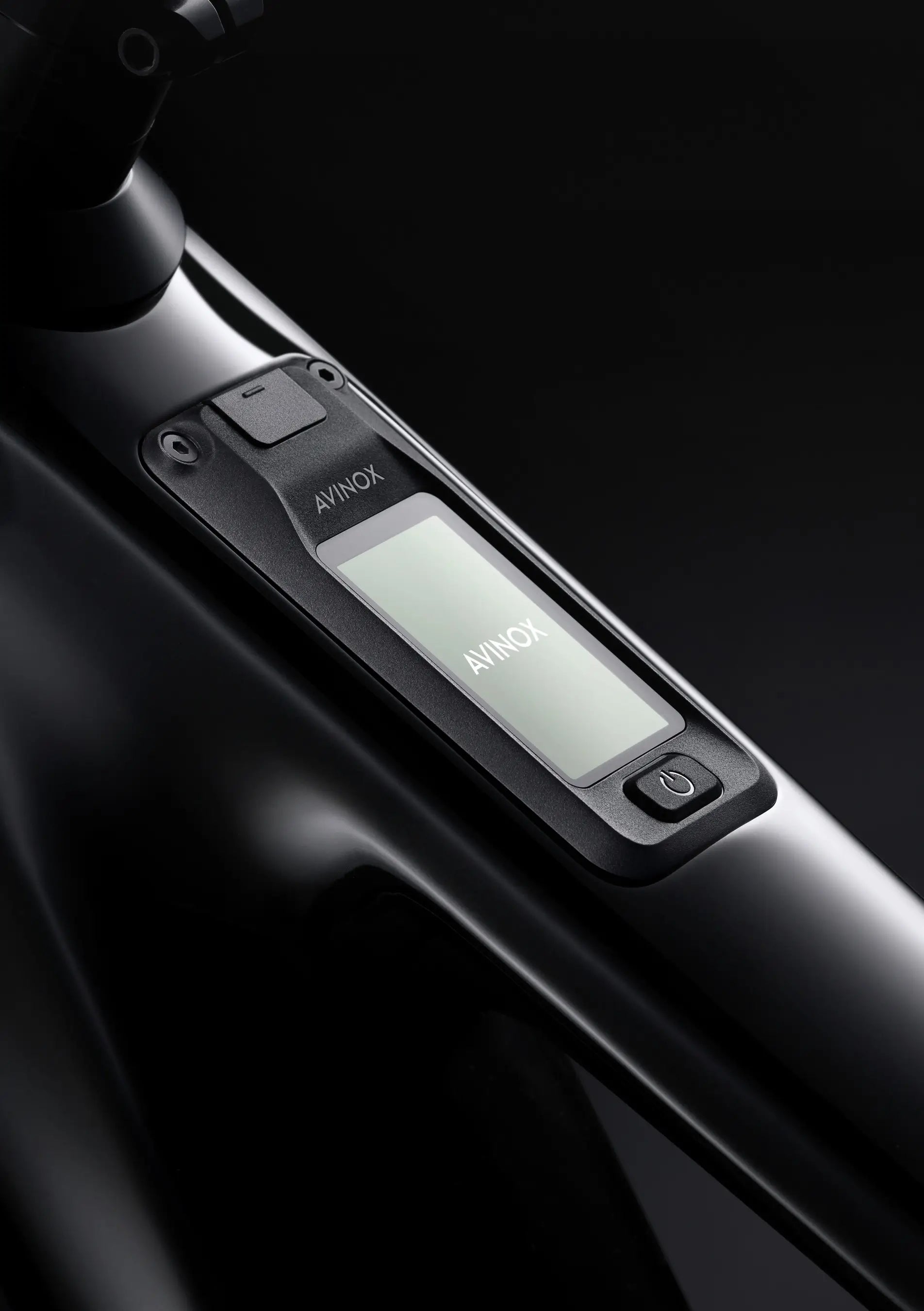

Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W

Fork
2026 FOX 36 Performance
160mm travel, GRIP Damper, 15×110mm, 44mm rake

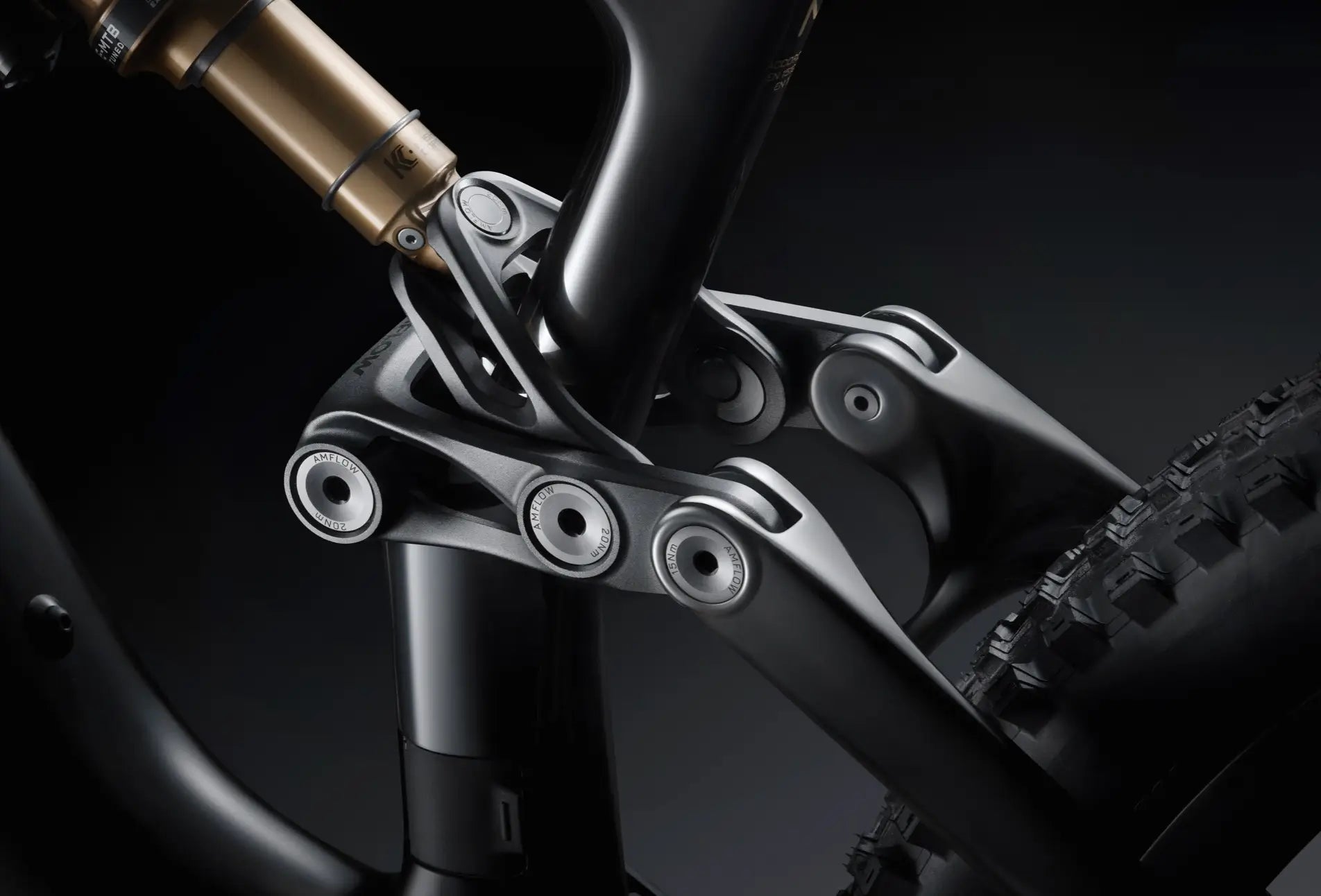

Rear shock
2026 FOX Float Performance
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Transmission

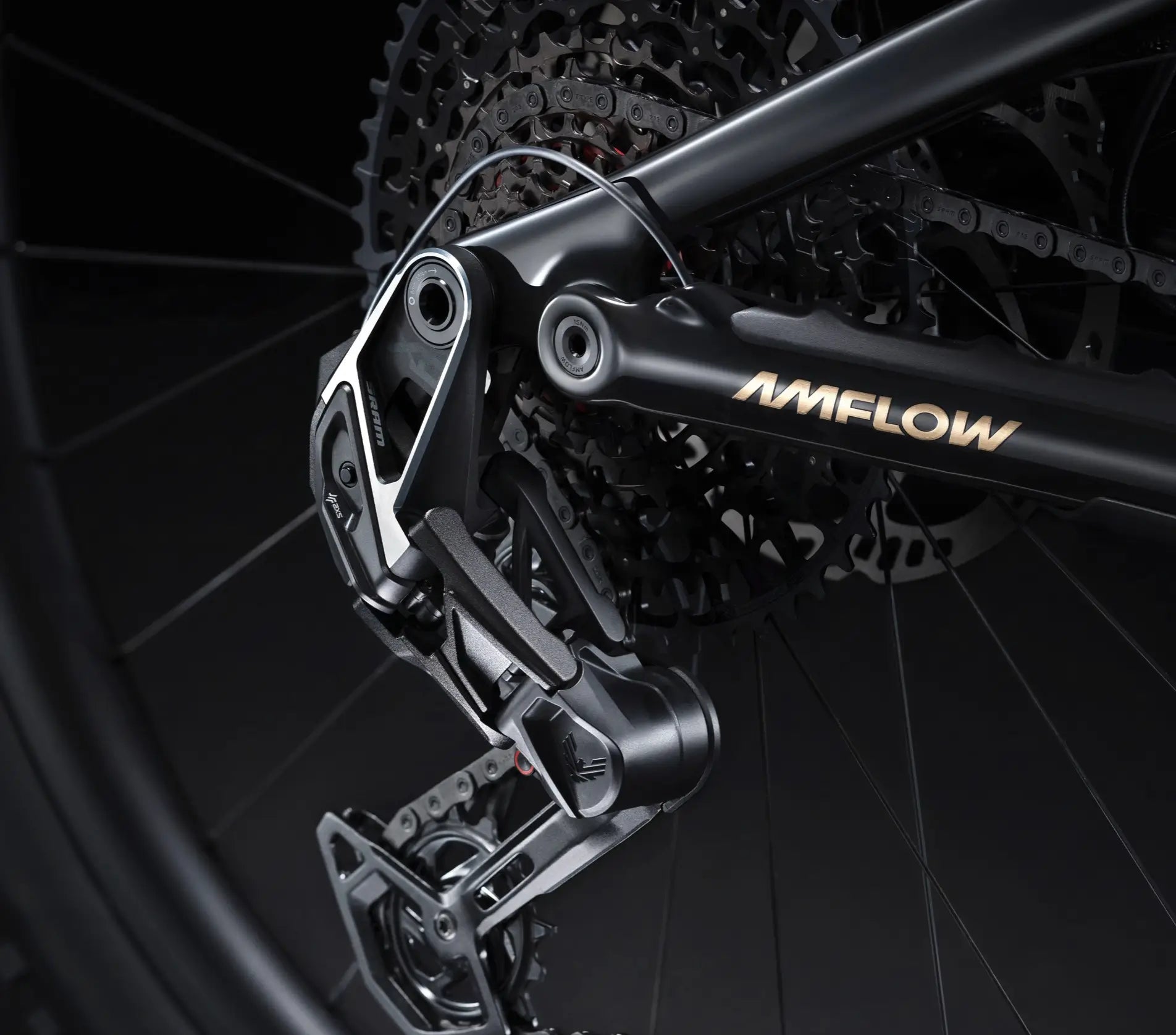

Rear Derailleur: SRAM Eagle 70 Transmission Derailleur
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM Eagle 70 Transmission Shifter | Single Click
Cassette: SRAM XS-1270 Eagle Transmission 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
Wheels
Amflow HMA-30
Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes: SAPIM E-Light J-bend
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Tires
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar
Amflow Enduro Alloy Handlebar
35mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep

Grips
Amflow Enduro Grips

Stem
Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm

Saddle
Selle Royal SRX Plus

Seatpost
KS Rage-i
M: 150mm
L: 170mm
XL/XXL: 190mm

Accessories
Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights
