Teewing Turbo Force XT takes a bold step forward in e-mountain biking with the DJI Avinox motor, delivering 105 N·m of torque in a compact, powerful design. Built on a lightweight carbon frame, it’s stiff and agile, offering a responsive ride on any trail. To enhance the experience, it’s equipped with Shimano XT M8100 12-speed shifting for precise gear changes, and a smooth suspension setup with a RockShox FS Lyric BASE fork and DELUXE SELECT+ rear shock. With an high-capacity 800Wh battery, the Turbo Force XT keeps you powered up and ready for adventure.

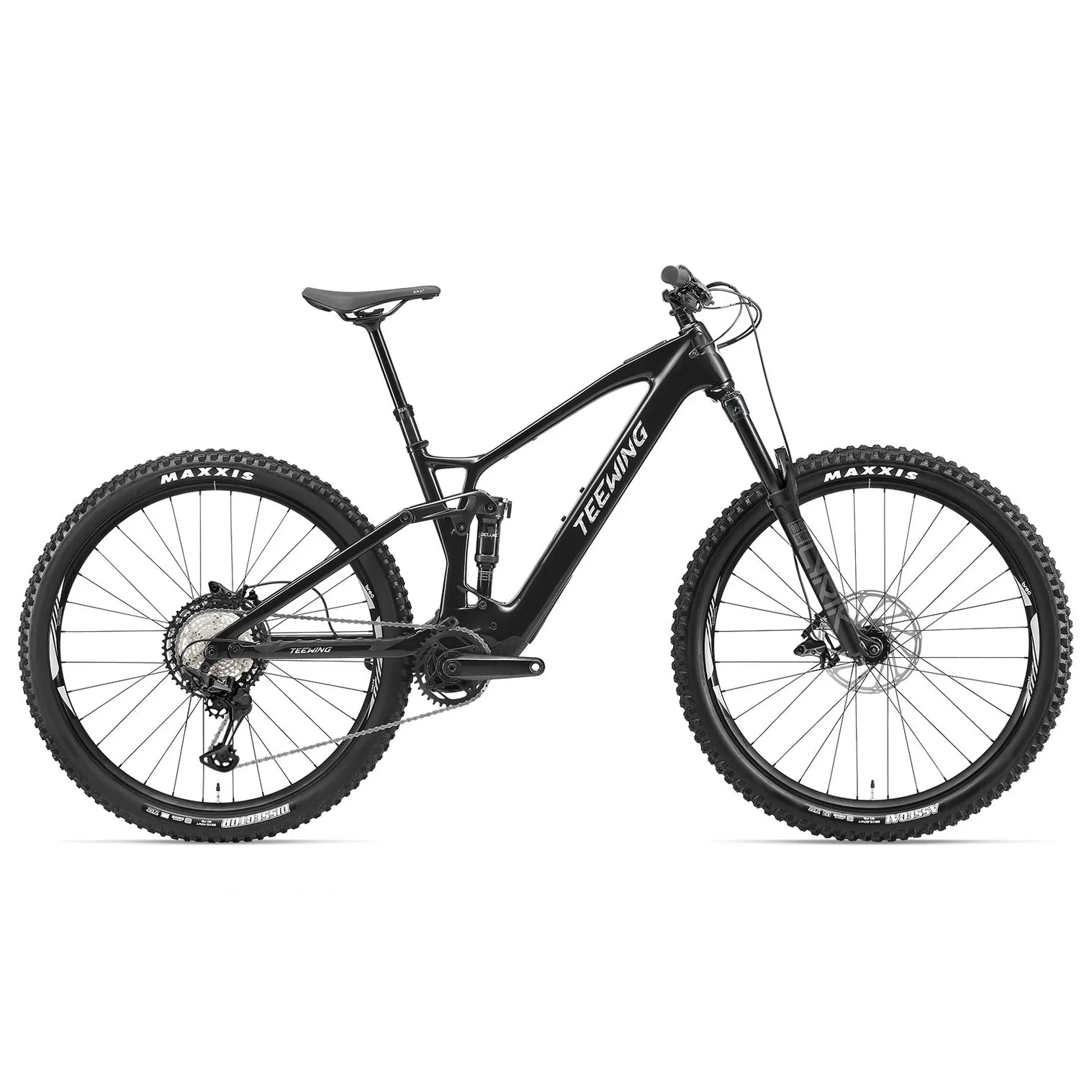

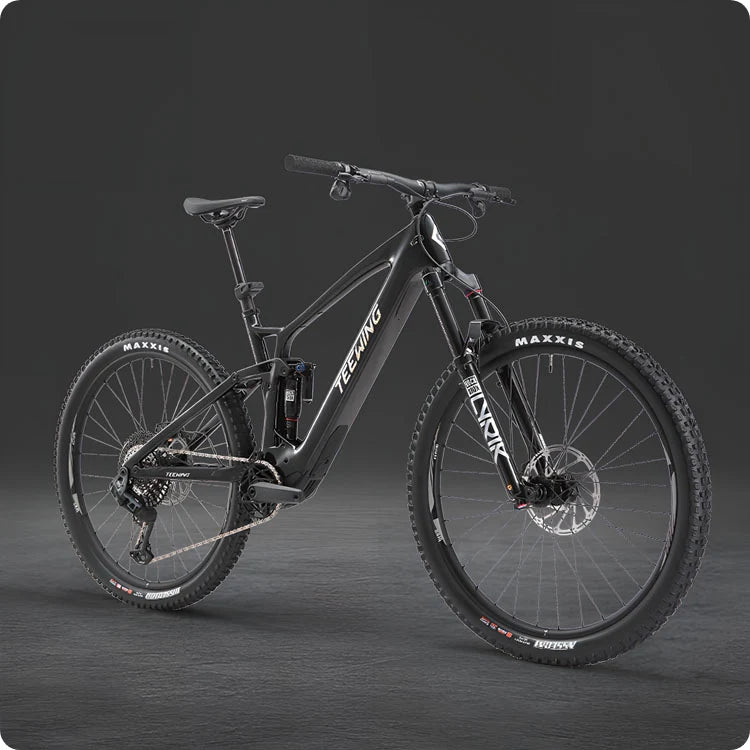

Teewing Turbo Force XT
Frame
Teewing Turbo Force Carbon Frame
29° rear wheels
Cosmic Black
150mm rear travel
E-bike System
DJI Avinox M1 Drive Unit: 105 N·m
DJI Avinox Integrated Battery: 800Wh
DJI Avinox Fast Charger: 4A/168W

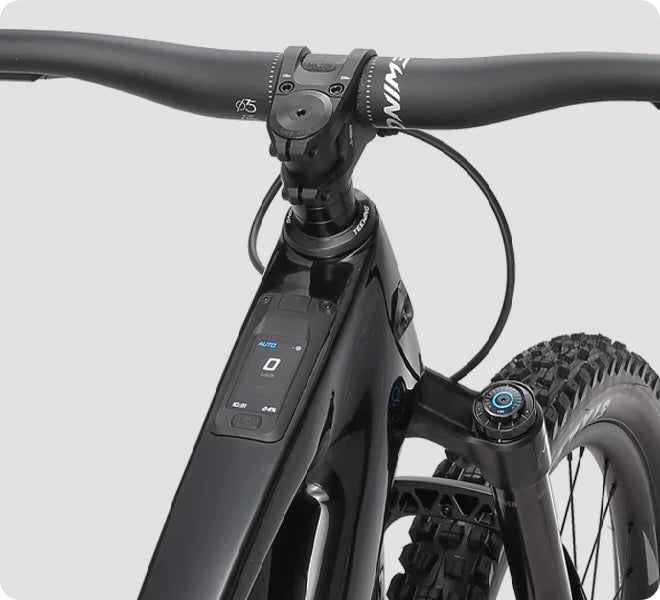

DJI Avinox Screen: 2-inch OLED Control Display
DJI Avinox Wireless Controllers: Right and left sides

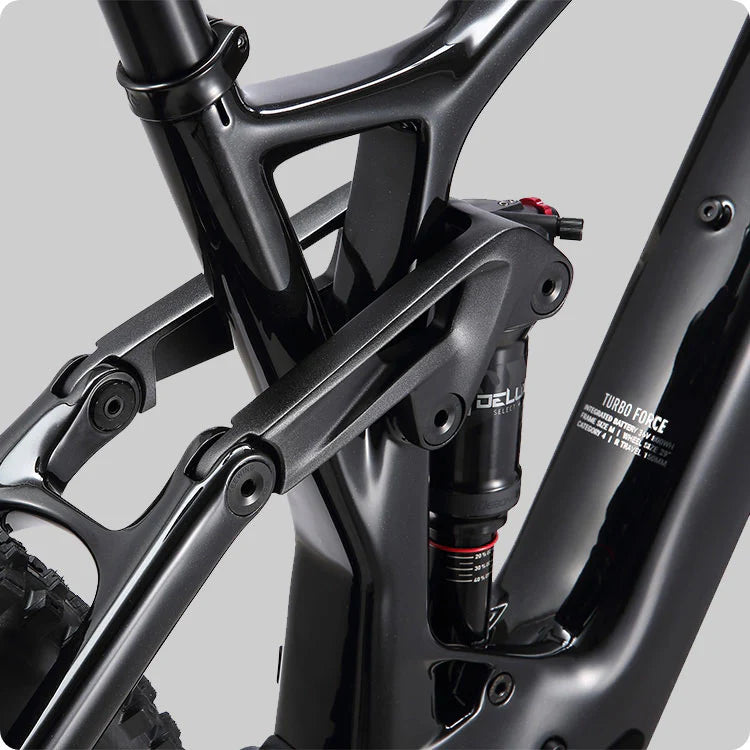

Rear Shock
Rockshox DELUXE SELECT+
Trunnion (185mm×55mm), LINEAR AIR CAN

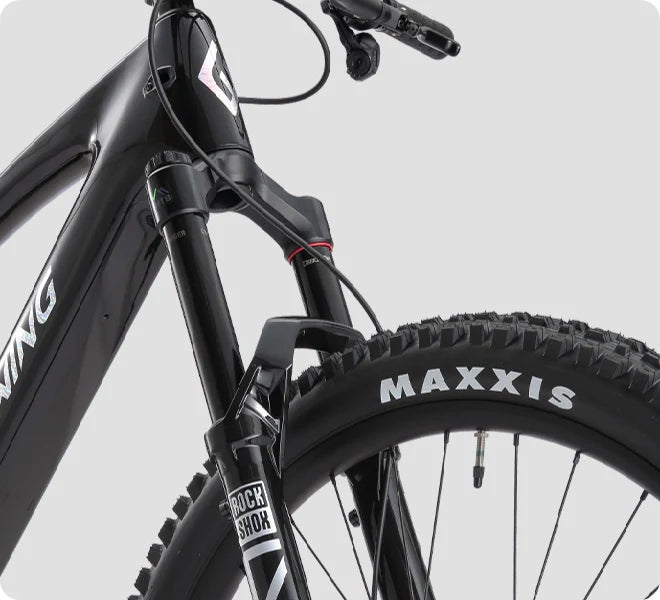

Fork
Rockshox FS LYRIK BASE
29" BOOST, 15X110mm, 160mm travel, 44mm rake

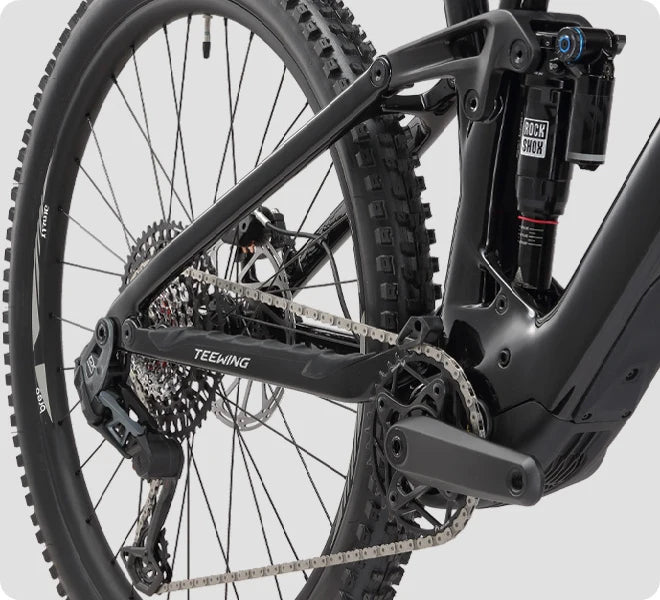

Transmission
Rear Derailleur: Shimano XT M8100, long cage
Shift Levers: Shimano XT M8100, 12 speed
Chain: Shimano SLX CN-M7100, 120LINKS
Chainring: Prowheel FD04 BCD=104,11/128*36T,BED
Cassette: Shimano SLX M7100, 10-51, 12 speed
Crankset: DJI Avinox SL Crank 160mm
Brakes
Shimano 4-piston hydraulic disc, M7100 lever, M7120 caliper
Shimano RT66, 6-bolt, 203mm
Wheels
Breo-X1701E
Spokes: SAPIM E-Light J-bend
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Alloy, 29'', 30mm internal width, 32H, tubeless ready
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Tires
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR
Handlebar
Teewing Enduro AL7075-T6 Handlebar
8-degree upsweep, 8-degree backsweep
35mm rise, 800mm wide
Grips
VELO Enduro Grips
Stem
Teewing Enduro AL6061-T6
Clamping diameter: 35mm
Length: 40mm
Saddle
Selle Royal SRX Plus
Seatpost
EXA 31.6
L: 170mm
M: 150mm
XL: 190mm
Accessories
User Manual
Shock Pump
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Weight*
21.8kgs / 48.1 lbs
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
