Teewing Turbo Force redefines e-mountain biking with a cutting-edge DJI Avinox motor that delivers 105 N·m of torque in a sleek, compact design. Built on a lightweight yet stiff Teewing Turbo Force carbon frame, it offers nimble handling and a dynamic trail experience. Topping it off, the bike features a SRAM GX Eagle drivetrain for smooth shifting and reliable performance, paired with the plush RockShox FS Lyric BASE fork and DELUXE SELECT+ rear shock to absorb every bump. With its long-lasting 800Wh battery and fast-charging system, the Turbo Force keeps you riding longer and faster with confidence.

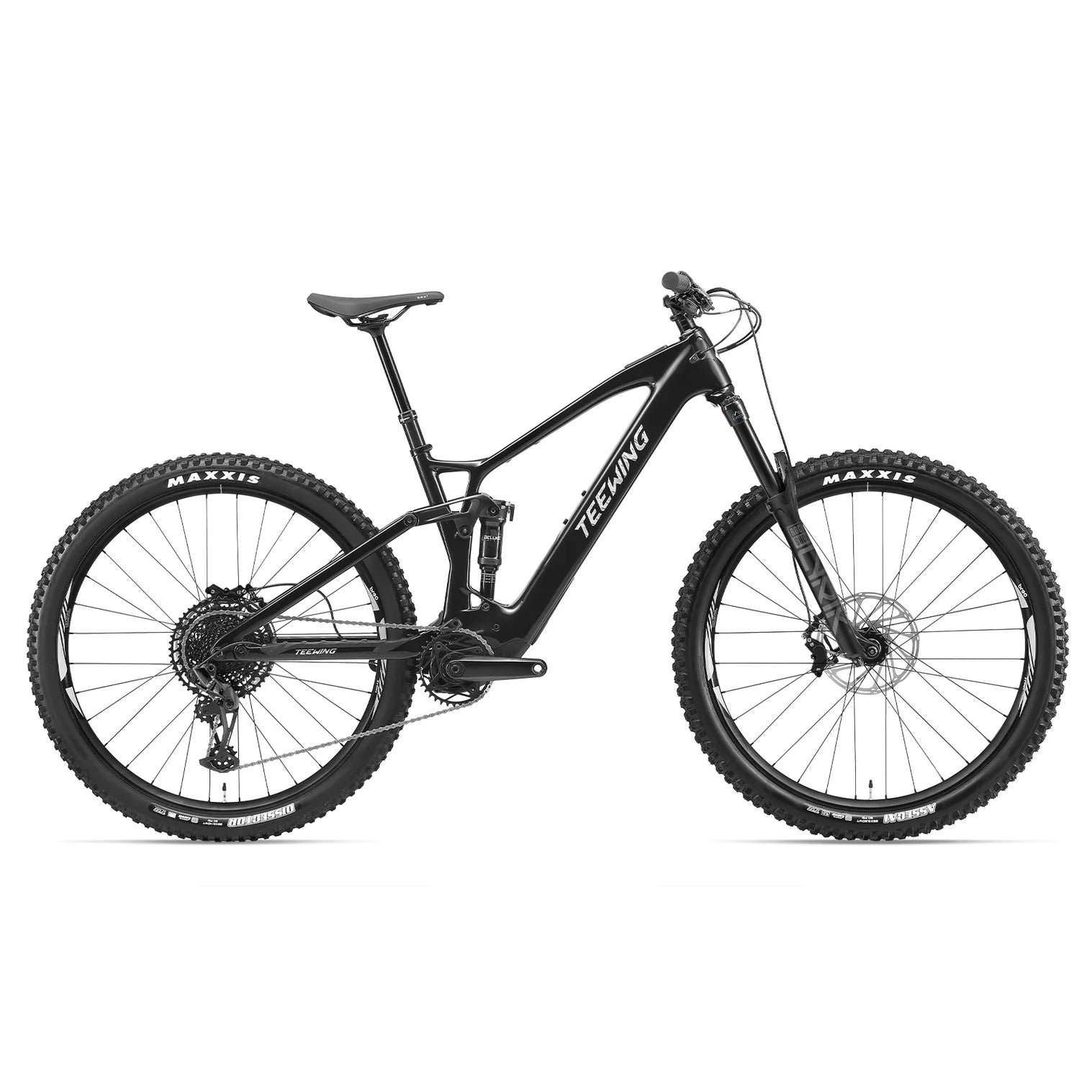

Teewing Turbo Force
Frame
Teewing Turbo Force Carbon Frame
29° rear wheels
Cosmic Black
150mm rear travel
E-bike System
DJI Avinox M1 Drive Unit: 105 N·m
DJI Avinox Integrated Battery: 800Wh
DJI Avinox Fast Charger: 12A/508W
DJI Avinox Screen: 2-inch OLED Control Display
DJI Avinox Wireless Controllers: Right and left sides

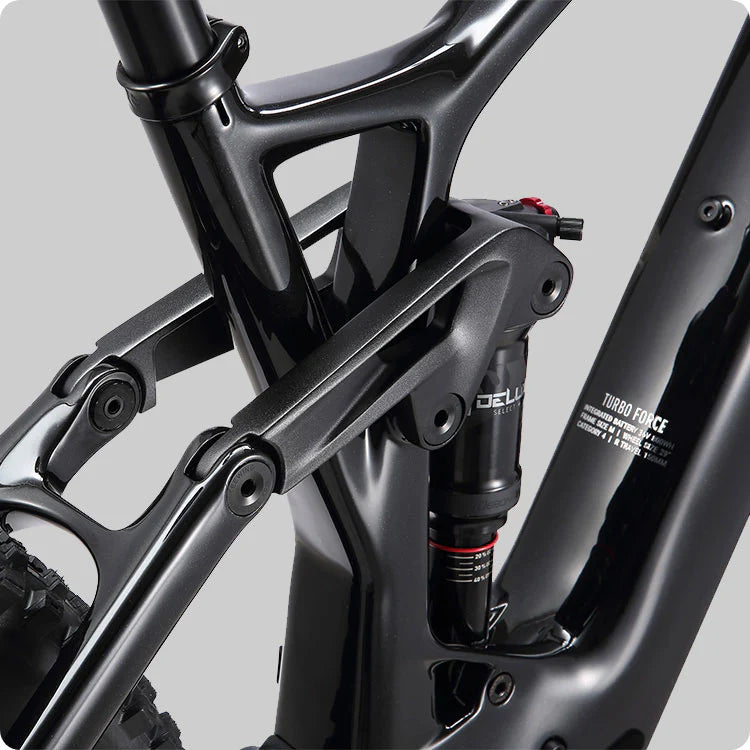

Rear Shock
Rockshox DELUXE SELECT+
Trunnion (185mm×55mm), LINEAR AIR CAN
Fork
Rockshox FS LYRIK BASE
29" BOOST, 15X110mm, 160mm travel, 44mm rake

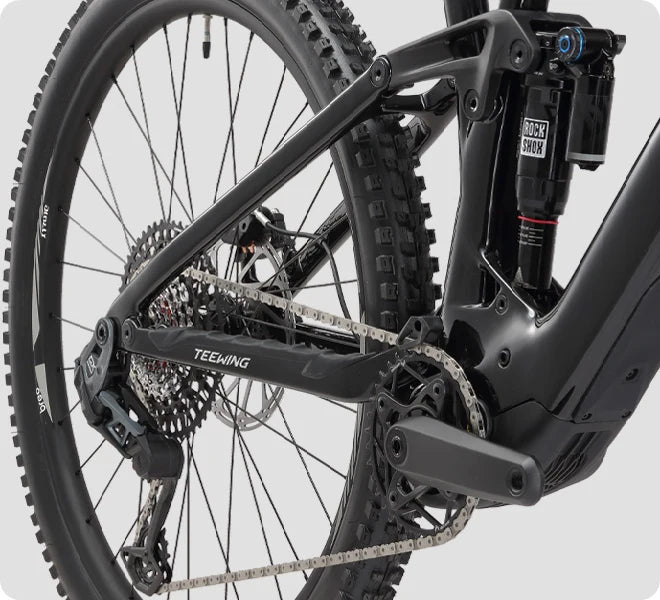

Transmission
Rear Derailleur: SRAM GX Eagle Rear Derailleur
Shift Levers: SRAM SL GX EAGLE TRIGGER LUNAR
Chain: SRAM NX Eagle 120LINK
Chainring: SRAM Eagle Transmission E-MTB Chainring 104 BCD 36T
Cassette: SRAM CS-PG-1230-A1，11-50T
Crankset: DJI Avinox SL Crank 160mm
Brakes
SRAM DB MOTIVE BRONZE 4-piston hydraulic disc
SRAM DB ROTOR/BOLTS CENTERLINE 200 ROUNDED
Wheels
Breo-X1701E
Spokes: SAPIM E-Light J-bend
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Alloy, 29'', 30mm internal width, 32H, tubeless ready
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Tires
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR
Handlebar
Teewing Enduro Carbon Handlebar
5-degree upsweep, 8-degree backsweep
20mm rise, 800mm wide
Grips
VELO Enduro Grips
Stem
Teewing Enduro 7075 CNC
Clamping diameter: 35mm
Length: 40mm
Saddle
Selle Royal SRX Plus
Seatpost
X-fusion 31.6
L: 170mm
M: 150mm
XL: 190mm
Accessories
User Manual
Shock Pump
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Weight*
21.5kgs / 47.4 lbs
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
